Our systems are delivered in the standard configuration as bench top systems. The systems are placed directly on the workstation. The display is integrated into the system and the flexible and removable dispenser is attached directly to the system.

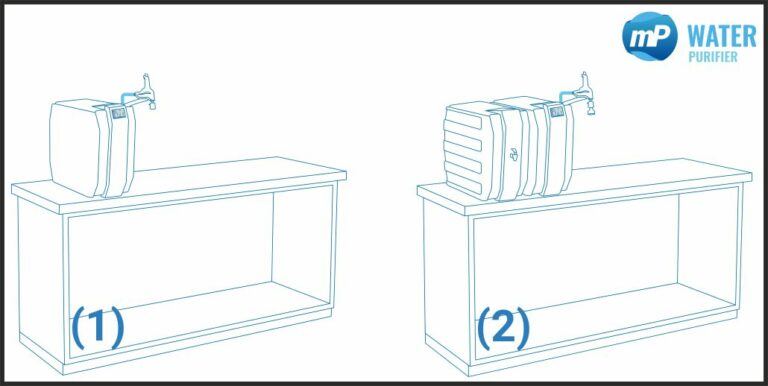

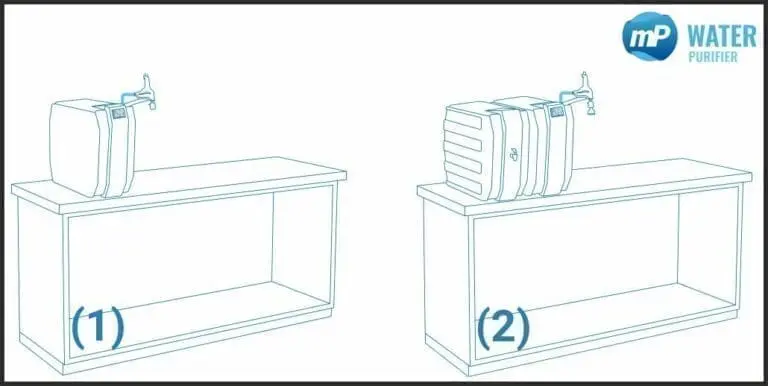

Water Purification Systems like Astacus² and Aquinity² P10 are set up like this (1). Systems like AquaRO², EDI², Aquinity² P35/70 and Aquinty² E35/70 which need an external tank for water production can be set up like this. The customer can choose if he would like to set the external reservoir next to the unit or under the bench (2).

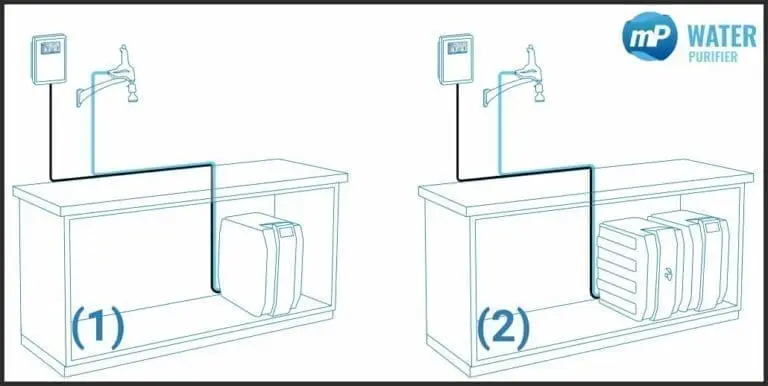

To save valuable desk space, the system can be ordered as a BI configuration. The system is installed under the worktable and only the display and dispenser are mounted on the wall.
Water purification systems such as Astacus² and Aquinity² P10 are designed as follows (1). Systems such as AquaRO², EDI², Aquinity² P35/70 and Aquinty² E35/70, which require an external tank for water production, can be set up in this way. (2). The customer can choose whether to place the external reservoir next to the appliance or under the bench.
To save valuable space on the table, the system can also be ordered as a wall-mounted configuration. The display, the dispenser and the device itself are mounted on the wall.
Water purification systems such as Astacus² and Aquinity² P10 are set up as follows (1) Systems such as AquaRO², EDI², Aquinity² P35/70 and Aquinty² E35/70, which require an external tank for water production, can be set up in this way. (2) (3). The customer can choose whether to place the external reservoir next to the appliance or under the bench (3).
If the height is unfavorable for operation, the display can also be installed at the lower end and in an inclined position. This gives the user good access. We offer this option to the user free of charge when preparing the quotation. (1) Configuration with inclined display for devices without and (2) with external tank.
Our water treatment systems equipped with a dispenser can be fitted with the so-called volumetric dosing function at the customer’s request when ordering. This function enables the volumetrically controlled dispensing of water with an increment of 0.1 l and a dispensing volume of 0.1 l to 99 l. The system prevents containers from overflowing and allows water to be dispensed without supervision.
